Nnianimu

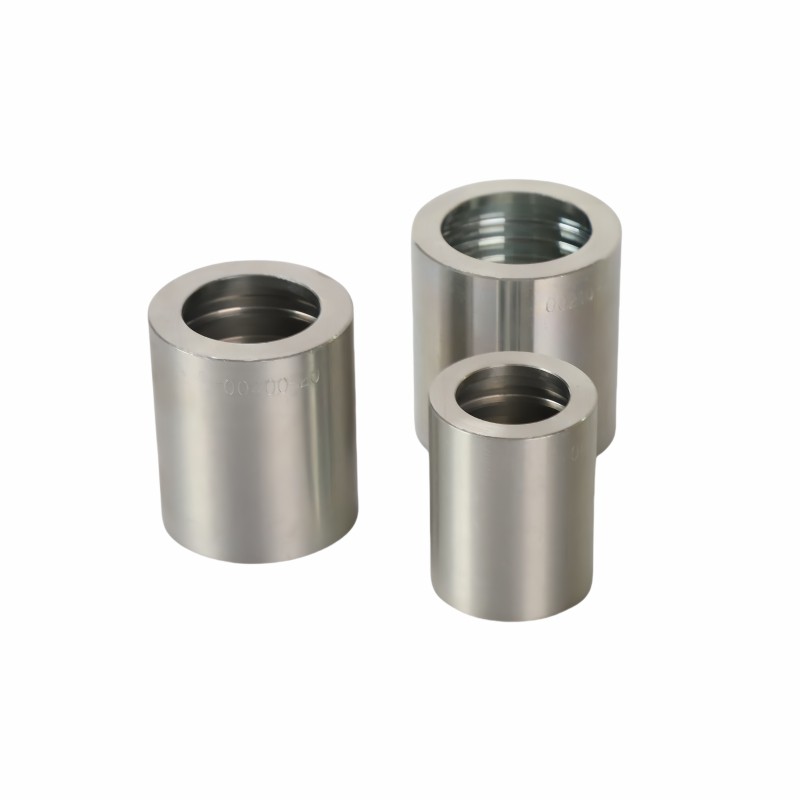

Gate 4-wire hydraulic ferrule yɛ a ɛkorɔn-performance crimping component a wɔayɛ ama secure, leak-adanseɛ nkitahodi wɔ hydraulic hose assemblies mu. Engineered for high-pressure fluid transfer systems, saa ferrule yi hwɛ ma wotumi kura mu kɛse na wɔsɔ ano wɔ nokwaredi mu wɔ mfiridwuma, mobile, ne off-road applications mu.
Nsɛm a Wɔakyerɛkyerɛ Mu .
|
Ɔfã a ɛto so abien. |
Hose bore . |
Nsusuwii . |
|
|
DN . |
KYƐ |
L |
|
|
00401-20 |
32 |
20 |
59 |
|
00401-24 |
40 |
24 |
74 |
|
00401-32 |
50 |
32 |
78 |
Parameters/mfiridwuma ho nsɛm .
|
Ankasa |
Zhejiang, China . |
Da a wɔde bɛma . |
Negotiable . |
|
Adansedi krataa . |
GB/T19001-2016 IDT ISO9001:2015 |
Nneɛma a wɔde kyekyere nneɛma ho . |
Export gyinapɛn . |
|
Atadeɛ |
Carbon dade . |
Waranti . |
Afe 1 . |
|
Katua Bere . |
TT . |
MOQ . |
2000 |
|
Tebea |
Foforɔ |
Ahosuo |
Zinc fitaa, kɔla zinc . |
Ɛfa adwumakuw ho .
Mfaso a ɛwɔ so .
Nnwumayɛ-a ɛwɔ mfiridwuma a wɔde sie nneɛma mu no di anim .
Quad-wire braided construction de 40% krampɔn tumi a ɛkorɔn sen 2-wire designs no ma .
Nneɛma a wɔagye ho tumi krataa a ɛka bom yɛ geometry no siw hose slippage ase wɔ wosow a ano yɛ den ase .
Ɛkura 95% a ɛwɔ krampɔn ahoɔden a ɛdi kan no mu wɔ nhyɛsoɔ kyinhyia 500,000 akyi .
Nhyɛso adwumayɛ a ɛso bi nni .
Wɔagye atom sɛ wɔyɛ adwuma daa wɔ 6,000 psi (414 bar) .
Nhyɛso a ɛpae boro 24,000 psi (1,655 bar) wɔ aduruyɛdan mu sɔhwɛ ahorow mu .
Nhyɛso titiriw-Balancing nhyehyɛe no yi mmerɛwyɛ ahorow fi hɔ .
Pɛpɛɛpɛyɛ a wɔyɛ no yiye .
CNC-mfiri a wɔde yɛ mfonini a efi dade a ɛnyɛ nokware mu (ɛnyɛ cast) .
Ɔhwɛ ±0.001" dimensional tolerance so .
Micro-a wɔayɛ no fɛfɛɛfɛ wɔ mu (ra < 0.4μm) siw hose a ɛyɛ mmerɛw no ano .
Nneɛma a ɛbɔ ho ban a ɛkɔ akyiri .
Asraafoɔ-spec zinc-nickel plating (1,500+ dɔnhwerew nkyene a wɔde petepete so) .
316L stainless steel option a ɛwɔ hɔ ma po/nnuru a wɔde di dwuma .
Ayaresa a ɛwɔ nipadua no mu no siw nsu a ɛyɛ fĩ ano .
Vibration & ahodwiriw a ɛko tia .
Egyina 20g wosow adesoa ano (MIL-STD-810G a wɔasɔ ahwɛ) .
Special alloy formulation resists adwuma a ɛyɛ den .
Ɔhwɛ nsɔano no mudi mu kura so kosi 100,000+ wosow kyinhyia so .
Mfaso a ɛwɔ so .
Laser-etched kɛse ne nhyɛso dodow agyiraehyɛde .
Pre-Crimp nsɛnkyerɛnnede ahorow a wɔde hwɛ nneɛma a ɛwɔ aniwa so no yɛ nokware .
30% crimping cycle a ɛyɛ ntɛm sen nnwuma gyinapɛn .
Premium material quality .
Wimhyɛn-Grade AISI 10B38 dade a ɛma ɔbrɛ a ɛkɔ soro .
Nneɛma a wɔde hwehwɛ nneɛma mu nyinaa a ɛwɔ mill sɔhwɛ adansedi nkrataa .
100% magnetic particle a wɔhwɛɛ mu sɛ ɛyɛ sintɔ ahorow .
Amansan nyinaa a ɛne ne ho hyia .
Wɔagye atom sɛ ɛne hose ahorow atitiriw nyinaa (Gates, Parker, Eaton) hyia.
Ɔne SAE 100R1, R2, R12, R13, R15 Series hoses yɛ adwuma .
Edu ISO 18752 ne SAE J517 wiase nyinaa gyinapɛn ahorow ho .
Nneɛma a ɛyɛ den a wɔde hwɛ sɛ ɛyɛ papa .
100% adanse nhyɛso a wɔasɔ ahwɛ ansa na wɔde amena .
Automated optical inspection nhyehyɛe .
QR code traceability ma batch biara .
Waranti ahobammɔ a ɛso bi nni .
Nkwa nna nyinaa mu nneɛma ho adansedi krataa .
Mfe 7 adwumayɛ ho bɔhyɛ .
24/7 mfiridwuma mmoa a ɛwɔ nnɔnhwerew 2 mmuae guarantee .
FAQ .
Dɛn na ɛma wo 4-wire ferrule no korɔn sen standard 2-wire designs?
Yɛn mfiridwuma a ɛwɔ 4-wire a wɔagye ho tumi krataa no ma:
40% kɛse radial clamping tumi .
Nhyɛso a wɔkyekyɛ wɔ hose no ho mpo .
Ɔwosow a ɛkorɔn a ɛko tia .
Elimines hose slippage wɔ soro-Pressure applications .
Nhyɛso ahorow bɛn na wo ferrules boa?
Standard nhyɛso tumi:
Adwumayɛ nhyɛso: 6,000 psi (414 bar) .
Adanse a ɛkyerɛ sɛ ɛyɛ nokware: 9,000 psi (621 bar) .
Nhyɛso a ɛpae: 24,000+ psi (1,655 bar) .
Amanneɛbɔ a ɛkorɔn-Pressure versions a ɛwɔ hɔ .
Nneɛma bɛn na ɛwɔ hɔ?
Standard options: .
Zinc-nickel a wɔde ahyɛ carbon mu a wɔde carbon ayɛ (n nkyene petepete so nnɔnhwerew 1,500) .
316L dade a ɛnyɛ den (po mu grade) .
Nneɛma titiriw: .
Duplex dade a ɛnyɛ den .
Inconel alloys .
Titanium (Aerospace dwumadie) .
Ɔkwan bɛn so na metumi apaw ferrule kɛse a ɛfata?
Nneɛma atitiriw a wɔde paw nnipa:
Match to hose od ne wire diameter .
Susuw nhyehyɛe adwumayɛ nhyɛso ho hwɛ .
Akontaabu a ɛfa ɔhyew a ɛwɔ hɔ ho .
Yɛn mfiridwumayɛfo no de mmoa a wɔde si hɔ ma kwa ma .
Nneɛma bɛn na ɛho hia sɛ wɔde crimping di dwuma?
Ɛne:
Crimpers atitiriw nyinaa (Gates, Parker, Eaton) .
Ɛhwehwɛ sɛ ɛne die sets hyia .
Crimp tumi a wɔkamfo kyerɛ: 25-35 tɔn .
Crimp nkyerɛkyerɛmu a ɛkɔ akyiri a wɔde ama wɔ nhyehyɛe biara mu .
So wo ferrules no ne hose ahorow nyinaa hyia?
Wɔagye atom sɛ:
SAE 100R1, R2, R12, R13, R15 na ɛwɔ hɔ.
EN 853, EN 856 .
DIN ne ISO gyinapɛn hoses .
Wɔnkamfo nkyerɛ wɔ thermoplastic hoses ho .
Bere bɛn na wode di kan wɔ nneɛma a wobɛkra ho?
Standard delivery: .
Nneɛma a ɛwɔ hɔ: Nnɔnhwerew 24-48
Amanneɛbɔ akɛse: 5-7 adwuma nna .
Nneɛma titiriw: adapɛn 2-3 .
Emergency Express Service a ɛwɔ hɔ .
So wode crimping akwankyerɛ ma?
Mmoa a edi mũ a wɔde ma no bi ne:
Anamɔn-B{1}}Anamɔn Crimping Guides .
Crimp diameter charts .
Video ahorow a wɔde si so dua .
Field Technician mmoa (wopɛ) .
adansedi nkrataa bɛn na wowɔ?
Mprempren adansedi ahorow:
ISO 9001:2015 na ɛwɔ hɔ.
API Q1.
PED 2014/68/EU .
DNV-GL Po so pene .
Nsiesiei bɛn na wɔkamfo kyerɛ?
Nneɛma a wɔde siw ano:
Afe afe nhwehwɛmu a wɔde aniwa hu .
Torque checks nnɔnhwerew 500 biara .
Wɔde besi ananmu wɔ mfe 5 anaa kyinhyia 50,000 akyi .
Nhyɛso sɔhwɛ wɔ reassembly akyi .
