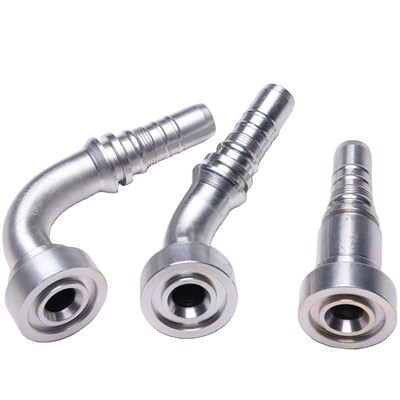

Hydraulic hose flange SAE no yɛ-performance hydraulic fitting a wɔayɛ sɛ ɛbɛma ahobanbɔ ne nsuo a ɛretu-adanseɛ nkitahodiɛ wɔ soro-nhyɛsoɔ hydraulic nhyehyɛeɛ. Wɔayɛ saa flange yi sɛnea ɛbɛyɛ a ebedu SAE (amanfo a wɔyɛ kar ho mfiridwumayɛfo) gyinapɛn ahorow ho, na ɛhwɛ ma ɛne mfiridwuma mu nneɛma a wɔhwehwɛ no hyia, ɛyɛ den, na wotumi de ho to so.
Nsɛm a Wɔakyerɛkyerɛ Mu .
|
Ɔfã a ɛto so abien. |
Flange kɛse . |
Hose bore . |
Nsusuwii . |
||||
|
DN . |
KYƐ |
A |
C |
D |
L |
||
|
87311-08-08 |
1/2" |
12 |
08 |
46 |
30.2 |
24 |
6.73 |
|
87311-12-08 |
3/4" |
12 |
08 |
47 |
38.1 |
31.7 |
6.73 |
|
87311-12-10 |
3/4" |
16 |
10 |
48 |
38.1 |
31.7 |
6.73 |
|
87311-12-12 |
3/4" |
20 |
12 |
48 |
38.1 |
31.7 |
6.73 |
|
87311-12-16 |
3/4" |
25 |
16 |
49 |
38.1 |
31.7 |
6.73 |
|
87311-16-12 |
1" |
20 |
12 |
51 |
44.4 |
38 |
8 |
|
87311-16-16 |
1" |
25 |
16 |
52 |
44.4 |
38 |
8 |
|
87311-16-20 |
1" |
32 |
20 |
53 |
44.4 |
38 |
8 |
|
87311-20-16 |
1.1/4" |
25 |
16 |
57 |
50.8 |
43 |
8 |
|
87311-20-20 |
1.1/4" |
32 |
20 |
58 |
50.8 |
43 |
8 |
|
87311-24-20 |
1.1/2" |
32 |
20 |
68 |
60.3 |
50 |
8 |
|
87311-24-24 |
1.1/2" |
40 |
24 |
68 |
60.3 |
50 |
8 |
|
87311-32-24 |
2" |
40 |
24 |
70 |
71.4 |
62 |
9.53 |
|
87311-32-32 |
2" |
50 |
32 |
70 |
71.4 |
62 |
9.53 |
|
87311-40-40 |
2.1/2" |
64 |
40 |
76 |
84.1 |
74 |
9.53 |
Parameters/mfiridwuma ho nsɛm .
|
Ankasa |
Zhejiang, China . |
Da a wɔde bɛma . |
Negotiable . |
|
Adansedi krataa . |
GB/T19001-2016 IDT ISO9001:2015 |
Nneɛma a wɔde kyekyere nneɛma ho . |
Export gyinapɛn . |
|
Atadeɛ |
Carbon dade . |
Waranti . |
Afe 1 . |
|
Katua Bere . |
TT . |
MOQ . |
2000 |
|
Tebea |
Foforɔ |
Ahosuo |
Zinc fitaa, kɔla zinc . |
Ɛfa adwumakuw ho .
Mfaso a ɛwɔ so .
Nea ɛkorɔn a ɛtra hɔ kyɛ .
Wɔayɛ no afiri soro-afiri a ɛyɛ den anaa dadeɛ a ɛnyɛ den, a ɛhwɛ ma ɛware-adwumayɛ a ɛtra hɔ daa wɔ mmeaeɛ a ɛyɛ den mpo.
Ɔsoro-nhyɛso a ɛko tia .
Wɔyɛɛ no sɛnea ɛbɛyɛ a ebetumi agyina nsu mu nhyɛso a ano yɛ den ano (ɛkɔ soro kodu 6,000 psi, a egyina nhwɛso so), asiw nsu a ɛtwetwe ne nhyehyɛe no huammɔdi ano.
SAE & ISO a wɔde di dwuma .
Ɛhyia SAE J518 ne ISO 6162 gyinapɛn ahorow, a ɛma awerɛhyem sɛ ɛne wiase nyinaa hydraulic nhyehyɛe ahorow bɛyɛ pɛ.
Leak-Adanseɛ Nkitahodiɛ .
Pɛpɛɛpɛɛ-mfiri a wɔde hyɛ mu no hwɛ ma ɛyɛ den, wotumi de ho to so, ɛma nsu a ɛyera ne bere a wɔde gyae no so tew.
Nneɛma a ɛwɔ hɔ a ɛyɛ corrosion-a ɛwɔ hɔ a ɛko tia .
Ɛwɔ zinc-plated, phosphate-a wɔde adura ho, anaasɛ stainless steel variants ma ahobanbɔ a ɛkɔ soro wɔ nsuo anaa ɛporɔw tebea mu.
Ɛnyɛ den sɛ wobɛhyehyɛ & asiesie .
Wɔyɛɛ no sɛnea ɛbɛyɛ a ɛbɛhyehyɛ ntɛmntɛm na wɔapaapae mu, atew adwumayɛfo bere so na ama adwumayɛ atu mpɔn.
Wide application range .
Ɛfata ma mfiridwuma, adansi, kuayɛ, po so, ne ngo & gas a wɔde di dwuma.
Ano aduru a wotumi sesa .
Nneɛma a ɛsõ pii, nneɛma, ne nhyɛso dodow a ɛwɔ hɔ a ɛbɛma wɔadi adwumayɛ ahiade pɔtee bi ho dwuma.
FAQ .
Asɛmmisa: Dɛn ne nhyɛso dodow a ɛwɔ saa flange yi mu?
A: Nhyɛso dodow no gu ahorow wɔ nhwɛso biara mu, nanso yɛn standard flanges no taa di ho dwuma kosi 6,000 psi. Bere nyinaa hwɛ product specifications no mu na woanya ratings pɔtee a egyina ne kɛse ne ne nneɛma so.
Asɛmmisa: Nneɛma bɛn na ɛwɔ hɔ?
A: Yɛde ma:
Carbon dade (gyinabea, a ɛwɔ nsɛe-aduru a ɛko tia) .
dade a ɛnyɛ den (ma mmeae a ɛyɛ den anaasɛ ɛyɛ mmerɛw) .
Alloy options afoforo bere a wɔabisa no .
Asɛmmisa: So saa flange yi ne ISO 6162 flanges hyia?
A: Yiw, wɔayɛ yɛn SAE flanges no sɛnea ɛbɛyɛ a wobetumi asesa ISO 6162 code A flanges, ahwɛ ahu sɛ wiase nyinaa hyia.
Asɛmmisa: Ɔkwan bɛn so na mɛpaw kɛse a ɛfata?
A: Flanges wɔ hɔ a ne kɛse gu ahorow (sɛ nhwɛso no, 1⁄2" kosi 2"). Fa flange kɛse no hyia wo hose mu diameter (ID) ne system ahwehwɛde ahorow. Hwɛ yɛn sizing chart anaa di yɛn mmoa kuw no ho nkɔmmɔ na woanya mmoa.
Asɛmmisa: So metumi de saa flange yi adi dwuma wɔ hydraulic hose biara ho?
A: Ɛsɛ sɛ wɔde SAE/ISO-a ɛne hose hyia no bɔ mu na wɔbɔ no yiye anaasɛ wɔboaboa ano. Bere nyinaa hwɛ sɛ ɛne wo hose specifications no hyia anaa.
Asɛmmisa: Mɛyɛ dɛn ahwɛ ahu sɛ leak-adanse nkitahodi?
A: Fa O-rings anaa gaskets (a ɛka ho anaa wɔakyerɛ) no di dwuma.
Tighten bolts pɛpɛɛpɛ wɔ mmeamudua nsusuwso mu na amma nhyɛso a ɛnteɛ.
Hwɛ sɛ nneɛma asɛe ansa na wode ahyɛ mu anaa.
Asɛmmisa: So amanne kwan so flanges wɔ hɔ?
A: Yiw! Yɛde custom sizes, materials, ne pressure ratings a egyina application ahiade so ma. Wo ne yɛn Engineering kuw no nkasa na woanya abisade titiriw bi.
Asɛmmisa: Nnwuma bɛn na ɛtaa de saa flange yi di dwuma?
A: Ɔdansi & Mining (a ɛyɛ nneɛma a wɔde yɛ adwuma, loaders) .
Kuadwuma (tractors, otwa adwuma) .
Oil & Gas (rigs a wɔde tutu fam, nsu a wɔde fa nsu mu) .
Marine & Offshore .
Mfiridwuma mu mfiri (hydraulic presses, injection molding) .
