Nnianimu
Nsɛm a Wɔakyerɛkyerɛ Mu .
|
Ɔfã a ɛto so abien. |

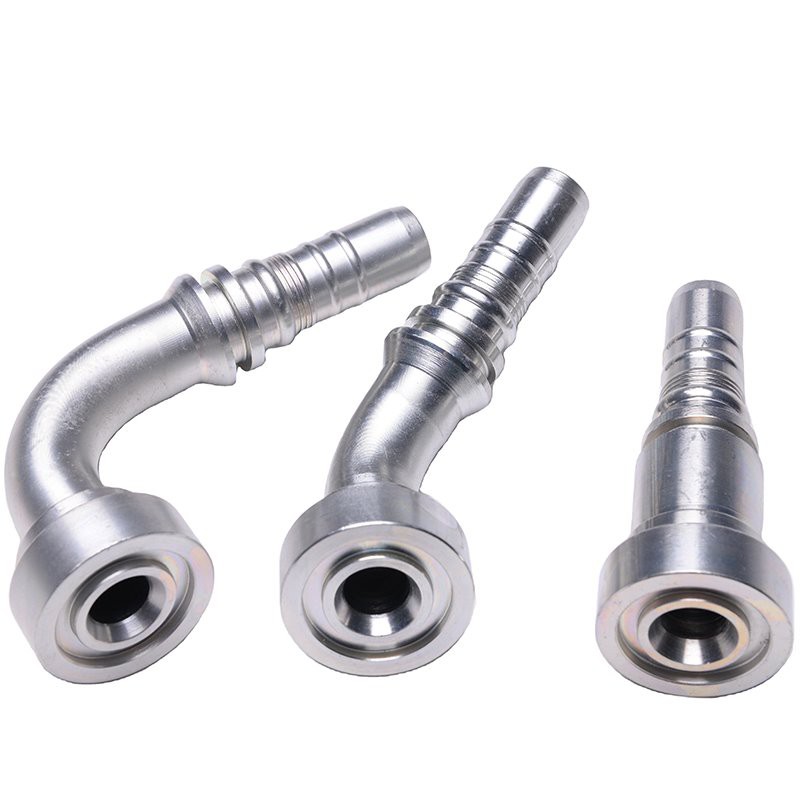

Flange kɛse . |
Hose bore . |
Nsusuwii . |
||||||
|
DN . |
KYƐ |
A |
C |
D |
H |
L |
|||
|
87391-08-08 |
1/2" |
12 |
08 |
41 |
30.2 |
24 |
47 |
6.73 |
|
|
87391-12-08 |
3/4" |
12 |
08 |
41 |
38.1 |
31.7 |
48 |
6.73 |
|
|
87391-12-10 |
3/4" |
16 |
10 |
56.5 |
38.1 |
31.7 |
52.5 |
6.73 |
|
|
87391-12-12 |
3/4" |
20 |
12 |
66.2 |
38.1 |
31.7 |
62 |
6.73 |
|
|
87391-12-12(H100) |
3/4" |
20 |
12 |
65.5 |
38.1 |
31.7 |
100 |
6.73 |
|
|
87391-12-12(H127) |
3/4" |
20 |
12 |
65.5 |
38.1 |
31.7 |
127 |
6.73 |
|
|
87391-12-12(H150) |
3/4" |
20 |
12 |
65.5 |
38.1 |
31.7 |
150 |
6.73 |
|
|
87391-12-16 |
3/4" |
25 |
16 |
76.7 |
38.1 |
31.7 |
67.5 |
6.73 |
|
|
87391-16-12 |
1" |
20 |
12 |
66.2 |
44.4 |
38 |
62 |
8 |
|
|
87391-16-16 |
1" |
25 |
16 |
78 |
44.4 |
38 |
67.5 |
8 |
|
|
87391-16-16(H100) |
1" |
25 |
16 |
76.7 |
44.4 |
38 |
100 |
8 |
|
|
87391-16-16(H127) |
1" |
25 |
16 |
76.7 |
44.4 |
38 |
127 |
8 |
|
|
87391-16-16(H150) |
1" |
25 |
16 |
76.7 |
44.4 |
38 |
150 |
8 |
|
|
87391-16-20 |
1" |
32 |
20 |
91.5 |
44.4 |
38 |
78.5 |
8 |
|
|
87391-20-16 |
1.1/4" |
25 |
16 |
78 |
50.8 |
43 |
67.5 |
8 |
|
|
87391-20-20 |
1.1/4" |
32 |
20 |
91.5 |
50.8 |
43 |
78.5 |
8 |
|
|
87391-20-20(H100) |
1.1/4" |
32 |
20 |
91.5 |
50.8 |
43 |
100 |
8 |
|
|
87391-20-20(H127) |
1.1/4" |
32 |
20 |
91.5 |
50.8 |
43 |
127 |
8 |
|
|
87391-20-20(H150) |
1.1/4" |
32 |
20 |
91.5 |
50.8 |
43 |
150 |
8 |
|
|
87391-20-24 |
1.1/4" |
40 |
24 |
108.5 |
50.8 |
43 |
78.5 |
8 |
|
|
87391-24-20 |
1.1/2" |
32 |
20 |
91.5 |
60.3 |
50 |
80.5 |
8 |
|
|
87391-24-24 |
1.1/2" |
40 |
24 |
109.4 |
60.3 |
50 |
94 |
8 |
|
|
87391-24-24(H127) |
1.1/2" |
40 |
24 |
109.4 |
60.3 |
50 |
127 |
8 |
|
|
87391-32-24 |
2" |
40 |
24 |
109.4 |
71.4 |
62 |
94 |
9.53 |
|
|
87391-32-32 |
2" |
50 |
32 |
131.8 |
71.4 |
62 |
114.3 |
9.53 |
|
|
87391-40-32 |
2.1/2" |
50 |
32 |
131.8 |
84.1 |
74.4 |
114.3 |
9.53 |
|
Parameters/mfiridwuma ho nsɛm .
|
Ankasa |
Zhejiang, China . |
Da a wɔde bɛma . |
Negotiable . |
|
Adansedi krataa . |
GB/T19001-2016 IDT ISO9001:2015 |
Nneɛma a wɔde kyekyere nneɛma ho . |
Export gyinapɛn . |
|
Atadeɛ |
Carbon dade . |
Waranti . |
Afe 1 . |
|
Katua Bere . |
TT . |
MOQ . |
2000 |
|
Tebea |
Foforɔ |
Ahosuo |
Zinc fitaa, kɔla zinc . |

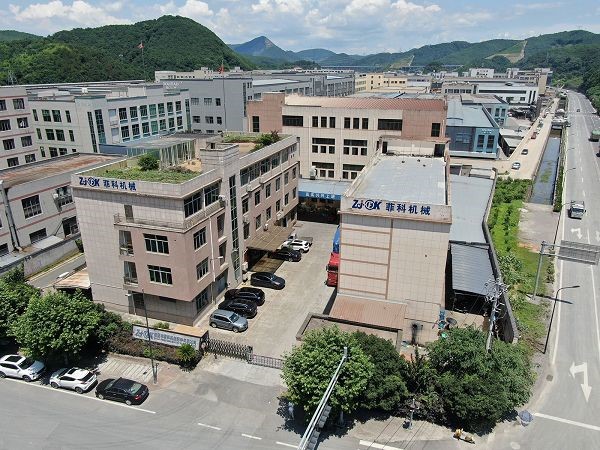

Ɛfa adwumakuw ho .
Mfaso a ɛwɔ so .
Nnwumayɛ-Ahyɛde a ɛma nhyɛso yɛ adwuma yiye .
Wɔyɛɛ no sɛnea ɛbɛyɛ a ebetumi agyina 15,000 psi adwumayɛ nhyɛso ano .
40% a ɛkorɔn a ɛpae nhyɛso dodow sen nnwuma gyinapɛn .
Nhyɛso a wɔagye ho tumi krataa-ɛkari pɛ wɔ mfiridwuma mu ma tebea horow a emu yɛ den .
Pɛpɛɛpɛyɛ a wɔyɛ no yiye .
CNC mfiridwuma a ɛwɔ ±0.001" tolerance control .
100% coordinate susudua (CMM) Nhwehwɛmu .

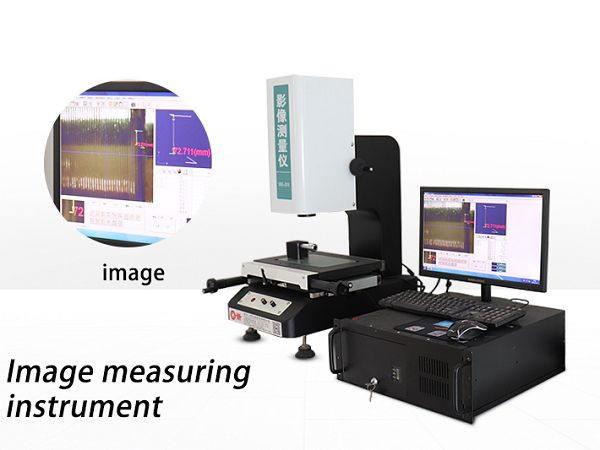

Automated optical inspection ma asase ani a ɛyɛ pɛpɛɛpɛ .
honam fam nyansahu a ɛkorɔn .
Ahunmu-grade alloys a ɛwɔ ɔbrɛ a ɛko tia nkɔso .
Nneɛma a ɛwɔ hɔ a ɛyɛ mmerɛw a ɛyɛ mmerɛw sɛ ɛbɛsɛe ade
Nneɛma a wɔde hwehwɛ nneɛma mu nyinaa fi owiyammo so kosi producv a wɔawie so .
Nneɛma a atwa yɛn ho ahyia-adamfofa .
Yɛde abɔdeɛ mu nnua ne log di dwuma bere nyinaa sɛ nneɛma, a yɛmfa splicing anaa nnuru biara nni dwuma, a ɛyɛ abɔdeɛ mu, nneɛma a atwa yɛn ho ahyia-adamfofa na ɛyɛ papa. Ma wo fie no nka wo ho na ɛhɔ yɛ fɛ yiye .
Durability a enni ano .
Yɛde abɔdeɛ mu nnua ne log di dwuma bere nyinaa sɛ nneɛma, a yɛmfa splicing anaa nnuru biara nni dwuma, a ɛyɛ abɔdeɛ mu, nneɛma a atwa yɛn ho ahyia-adamfofa na ɛyɛ papa. Ma wo fie no nka wo ho na ɛhɔ yɛ fɛ yiye .
Gyinapɛn a edi mũ a wodi so .
Wɔagye atom sɛ wɔyɛ SAE, ISO, DIN, ne ASME gyinapɛn ahorow .
PED, ATEX, ne API 6A a ɛne mmara hyia .
ABS/DNV po so pene a ɛwɔ hɔ .
Mfaso a ɛwɔ so .
Kɔla-de pressure class no ahyɛ mu ma ɛyɛ mmerɛw sɛ wobehu .
Quick-Fa 60% instɔlehyɛn 60% ka ho .
Torque indicators a wɔaka abom a wɔde bɛyɛ nhyiam a ɛfata .
Amanneɛbɔ a ɛfa mfiridwuma ho .
Nhyehyɛe ano aduru a edi mũ fi 1/8" kosi 6" kɛse .
Nneɛma a ɛyɛ nwonwa a Monel, Inconel, ne Stellite ka ho .
CAD-Akwan a wɔfa so yɛ no yiye .

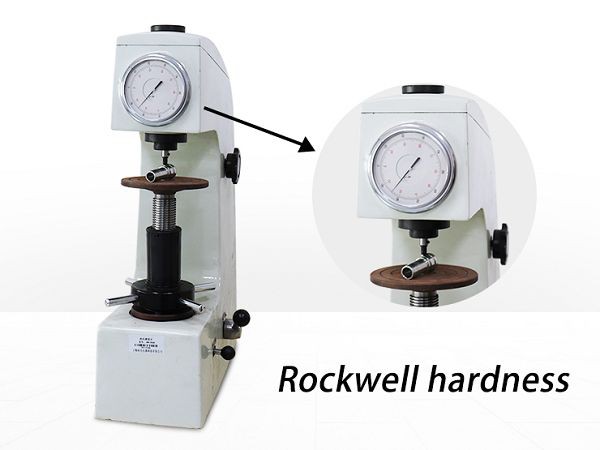

Nneɛma a ɛyɛ den a wɔde hwɛ sɛ ɛyɛ papa .
100% hydrostatic sɔhwɛ wɔ 1.5x adwumayɛ nhyɛso .
Ultrasonic ne magnetic abɔde nketenkete a wɔhwɛ so .
Lot-Afiri a wɔde di dwuma a wotumi hwehwɛ mu yiye .
Wiase nyinaa mfiridwuma ho mmoa .
24/7 mfiridwuma ho mmoa .
Wɔ-site nhyehyɛe akontaabu a ɛwɔ hɔ so .
Virtual Reality Installation Ntetee .
FAQ .
Asɛmmisa: Gyinapɛn bɛn na wo hydraulic fittings ne flanges di so?
A: Yɛn nneɛma no du wiase nyinaa nnwuma gyinapɛn ahorow ho, a nea ɛka ho ne:
SAE J514, J518, J1453 na ɛwɔ hɔ.
ISO 8434, 6162, 12151 na ɛwɔ hɔ.
DIN 2353, 20066
ASME B16.5, B16.47 na ɛwɔ hɔ.
ANSI, NFPA, ne API ho nsɛm .
Asɛmmisa: Nhyɛso bɛn na ɛwɔ hɔ?
A: Yɛde fittings ne flanges ma nhyɛso ahorow ahorow:
Low-nhyɛso ( a ennu anaasɛ ɛne 3,000 psi / 207 bar) – Standard hydraulic systems .
Medium-Nhyɛso (3,000–6,000 psi / 207–414 bar) – Nnwuma & mobile hydraulics
High-Pressure (6,000–15,000 psi / 414–1,034 bar) – ngo & gas, ahunmu, ne mfiri a emu yɛ duru
Asɛmmisa: Nneɛma bɛn na wɔde di dwuma wɔ wo fittings ne flanges mu?
A: Nneɛma a ɛwɔ hɔ no bi ne:
Carbon Steel – Zinc-a wɔde adura ho anaasɛ wɔde phosphate ayɛ-wɔakyerɛw .
Dadeɛ a ɛnyɛ den (304/316) – nsɛe-ɛko tia nneɛma a atwa yɛn ho ahyia a ɛyɛ den .
Alloy steel (AISI 4130, 4140) – ɛkorɔn-ahoɔden a ɛwɔ nhyɛso a emu yɛ den mu .
Nneɛma a ɛyɛ nwonwa (Inconel, Monel, Titanium) – a wɔde yɛ nnuru/ɔhyew a ɛko tia .
Asɛmmisa: Ɔkwan bɛn so na mɛpaw fitting anaa flange a ɛfata ama me system no?
A: Nneɛma atitiriw a ɛsɛ sɛ yesusuw ho:
Thread type (NPT, BSPP, BSPT, metric, ORF, ne nea ɛkeka ho) .
kɛse (1/8" kosi 6") .
Nhyɛso a wɔde ma .
Nsu a ɛne no hyia .
Nneɛma a atwa yɛn ho ahyia tebea (ɔhyew, nsɛe, wosow) .
Yɛn mfiridwumayɛfo no de mmoa a wɔde ma kwa ma.
Asɛmmisa: So wo fittings no ne brand afoforo sesa?
A: Yiw – wɔayɛ yɛn nneɛma no sɛnea ɛbɛyɛ a wobetumi asesa koraa ne SAE/ISO/DIN-a ɛne no hyia.
Hyɛ no nsow: Bere nyinaa hwɛ sɛ thread type ne sealing kwan no yɛ pɛpɛɛpɛ ma ɛne no hyia.
Asɛmmisa: Akwan bɛn na ɛwɔ hɔ a wɔfa so siw ano?
A: Yɛde sealing options pii ma:
O-Ring Face Seal (ORFs) – Nea eye ma soro-nhyɛso, nsu a ɛretu-adanse nkitahodi ahorow .
Asaawa a ɛyɛ teateaa (NPT, BSPT) – dade{0}}kɔ{1}}dadeɛ nsɔano .
Anim a ɛyɛ tratraa a ɛwɔ gasket (SAE/ISO flange) – ma flange nkitahodi ahorow .
Bite-Type (DIN 2353) – ferrule-gyinaso a wɔde hyɛ mu .
Q: Bere bɛn na edi kan ma standard vs. amanne kwan so ahyɛde?
A: Standard Fittings: Nnafua 1–3 (wɔ stock mu) .
Custom/Special Orders: Adapɛn 2–4 (egyina nsɛm a ɛyɛ den so) .
Nnwuma a wɔyɛ no ntɛmntɛm: ɛwɔ hɔ ma ahwehwɛde ahorow a egye ntɛmpɛ .
Asɛmmisa: So wode instɔlehyɛn akwankyerɛ ma?
A: Yiw! Yɛde ma:
Anamɔn-B{1}}Anamɔn Instɔlehyɛn Nhoma .
Torque nkyerɛkyerɛmu & tightening ntoatoaso .
Video Nkyerɛkyerɛ & 3D Nhyiam Akwankyerɛ .
Wɔ-beae mfiridwumayɛfo mmoa (wopɛ) .
Asɛmmisa: Adansedi ahorow bɛn na wowɔ?
A: Yɛn adwumayɛbea ne nneɛma a yɛyɛ no wɔ adansedi krataa sɛ:
ISO 9001:2015 (Nneɛma a Ɛyɛ Paara) .
PED 2014/68/EU (Nhyɛso Nnwinnade Ho Akwankyerɛ) .
ATEX (mmeae a ɛpaapae) .
ABS, DNV, & Lloyd's Register (Po so akwammisa) .
Asɛmmisa: Nsiesiei bɛn na ɛho hia ma hydraulic fittings?
A: Nsiesiei a wɔkamfo kyerɛ no bi ne:
Afe afe torque checks .
Afe abien nsɔano a wɔde besi ananmu .
Nhwehwɛmu a wɔde aniwa hu ma corrosion/wear .
Ultrasonic sɔhwɛ a ɛfa soro-nhyɛso nhyehyɛe ho .
