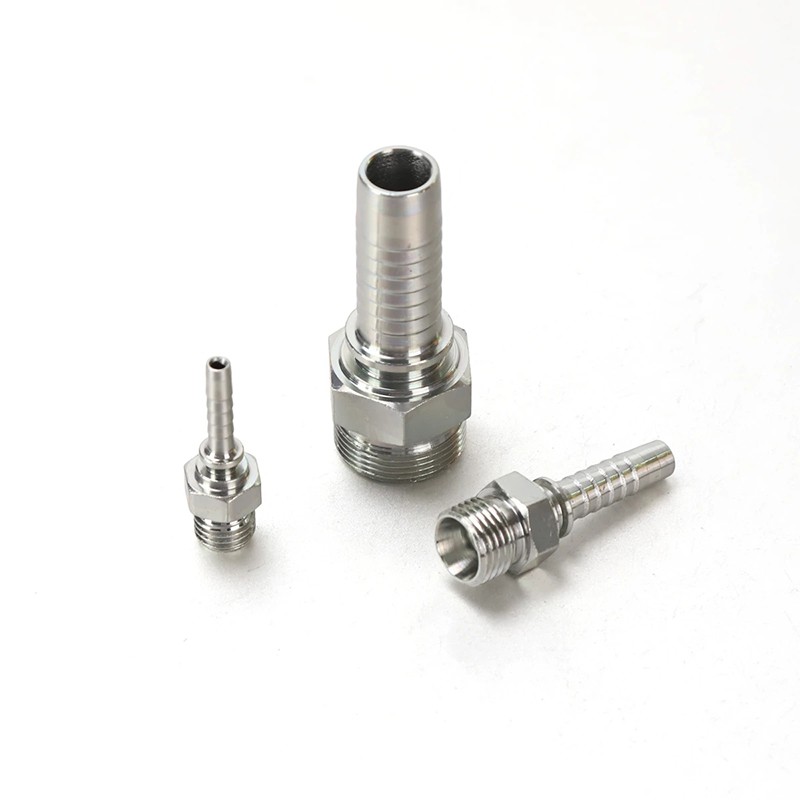

Hose fittings yɛ nneɛma a ɛho hia a wɔayɛ sɛ ɛbɛma ahobammɔ, leak-adanse nkitahodi a ɛda hoses, pipes, ne nnwinnade ntam wɔ mfiridwuma, kuayɛ, ne afie mu nneɛma ahorow mu. Saa nneɛma yi hwɛ ma nsu, mframa, ne nsu afoforo kɔ baabi foforo yiye bere a ɛma nhyɛso kɛse ne nnuru a ɛko tia nyarewa no kɔ so yɛ adwuma no. Ɛyɛ papa ma hydraulic nhyehyɛe, mframa nnwinnade, nsu a wɔde gugu nnɔbae so, pɛtro nhama, ne nea ɛkeka ho, na ɛma nneɛma a ɛwɔ hɔ no kyɛ na wotumi de ho to so wɔ mmeae a ɛyɛ den.
Nsɛm a Wɔakyerɛkyerɛ Mu .
| Ɔfã a ɛto so abien. | Asaawa E . | Hose bore . | Tube OD . | Nsusuwii . | |||
| DN . | KYƐ | A | C | S1 | |||
| 10511-14-04 | M14X1.5 | 6 | 4 | 6 | 241 | 12 | 14 |
| 10511-16-04 | M16X1.5 | 6 | 4 | 8 | 26.5 | 12 | 17 |
| 10511-18-04 | M18X1.5 | 6 | 4 | 10 | 26.5 | 12 | 19 |
| 10511-20-05 | M20X1.5 | 8 | 5 | 12 | 27 | 12 | 22 |
| 10511-20-06 | M20X1.5 | 10 | 6 | 12 | 26.5 | 12 | 22 |
| 10511-22-05 | M22X1.5 | 8 | 5 | 14 | 30.5 | 14 | 24 |
| 10511-22-06 | M22X1.5 | 10 | 6 | 14 | 30.5 | 14 | 24 |
| 10511-22-08 | M22X1.5 | 12 | 8 | 14 | 31 | 14 | 24 |
| 10511-24-08 | M24X1.5 | 12 | 8 | 16 | 31.5 | 14 | 27 |
| 10511-30-10 | M30X2 | 16 | 10 | 20 | 36 | 16 | 32 |
| 10511-30-12 | M30X2 | 20 | 12 | 20 | 36 | 16 | 32 |
| 10511-36-12 | M36X2 | 20 | 12 | 25 | 40.5 | 18 | 41 |
| 10511-36-16 | M36X2 | 25 | 16 | 25 | 41.5 | 18 | 38 |
| 10511-42-16 | M42X2 | 25 | 16 | 30 | 44 | 20 | 46 |
| 10511-42-20 | M42X2 | 32 | 20 | 30 | 45 | 20 | 46 |
| 10511-52-20 | M52X2 | 32 | 20 | 38 | 50 | 22 | 55 |
Parameters/mfiridwuma ho nsɛm .
|
Ankasa |
Zhejiang, China . |
Ɔkwan a wɔfa so de di dwuma . |
Pipeline nkitahodi . |
|
Bere a wɔde ma . |
7-45days . |
Nneɛma a wɔde kyekyere nneɛma ho . |
Nnua a wɔde yɛ aduru a wɔfrɛ no paking . |
|
Atadeɛ |
Carbon dade . |
Waranti . |
Afe 1 . |
|
Kɛseɛ |
1/4''-2'' |
Adeban |
Feike . |
|
Aduru a wɔde yɛ nneɛma a ɛwɔ soro . |
Galvanizing . |
Boadeɛ |
Karton adaka . |
Ɛfa adwumakuw ho .
Mfaso a ɛwɔ so .
Factory Direct – Nneɛma bo a ɛyɛ akansi .
Sɛ́ obi a odi kan a ɔyɛ hydraulic fittings no, yeyi mfinimfini mpanyimfo fi hɔ de nneɛma a ɛkorɔn ma-ade a ɛyɛ papa wɔ adwumayɛbea bo so, hwɛ hu sɛ wɔbɛkora ɛka so a yɛrensɛe nea ɛyɛ papa.
Strict quality control & certifications .
ISO 9001 Certified – hyɛ bɔ sɛ ɛbɛkɔ so ayɛ papa wɔ nneɛma a wɔyɛ mu.
Nneɛma a wɔde di dwuma – de dade a ɛnyɛ den, carbon dade, ne kɔbere a ɛyɛ fɛ di dwuma ma ɛyɛ den.
Pressure & Leak Testing – Fitting biara fa sɔhwɛ a emu yɛ den mu (ɛkɔ 10,000 psi) de hwɛ hu sɛ wotumi de ho to so.
Nneɛma a wɔyɛ no kɛse .
Nhama ahorow: NPT, BSPP, BSPT, JIC, SAE, metric, ne nea ɛkeka ho.

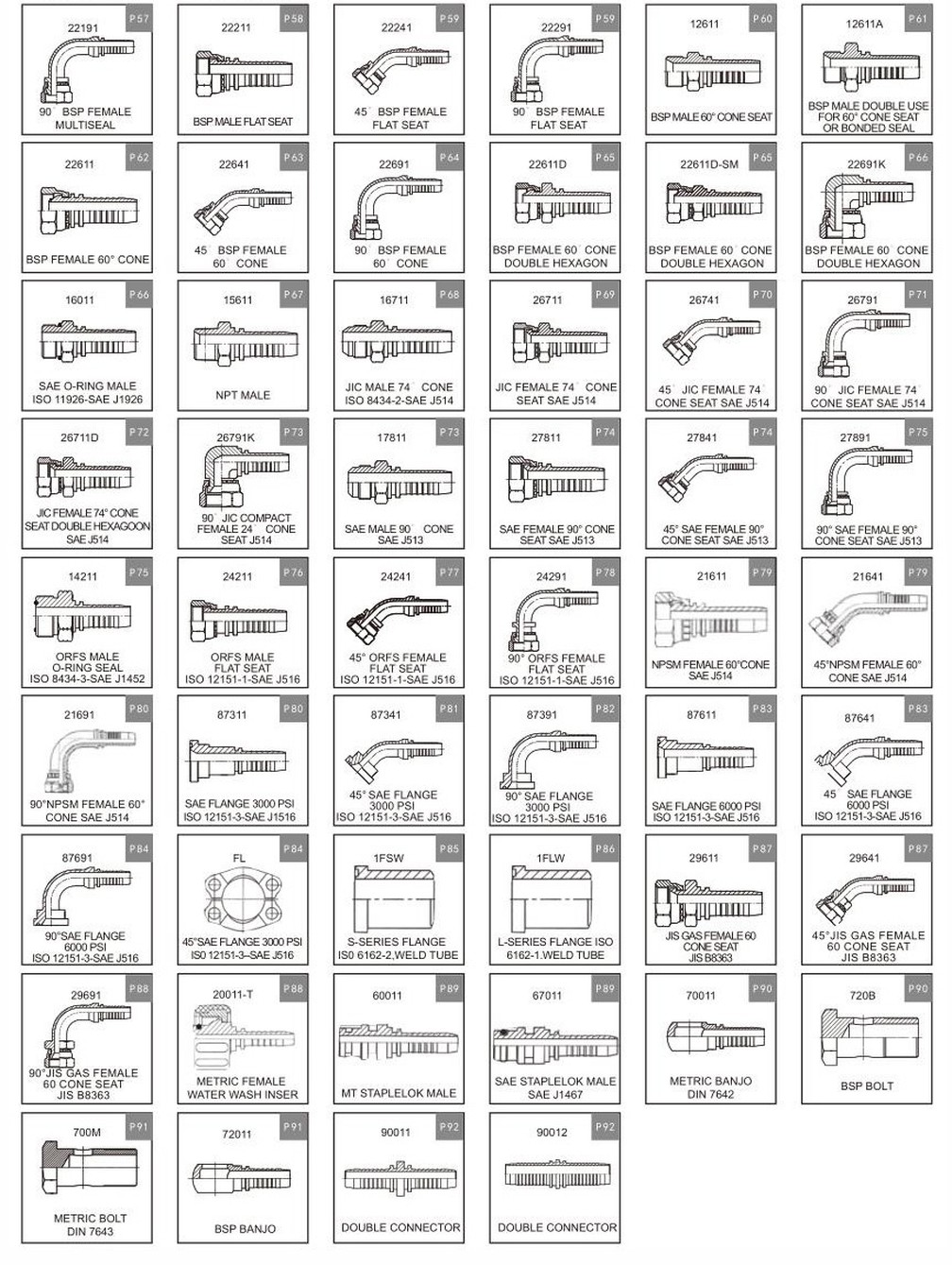

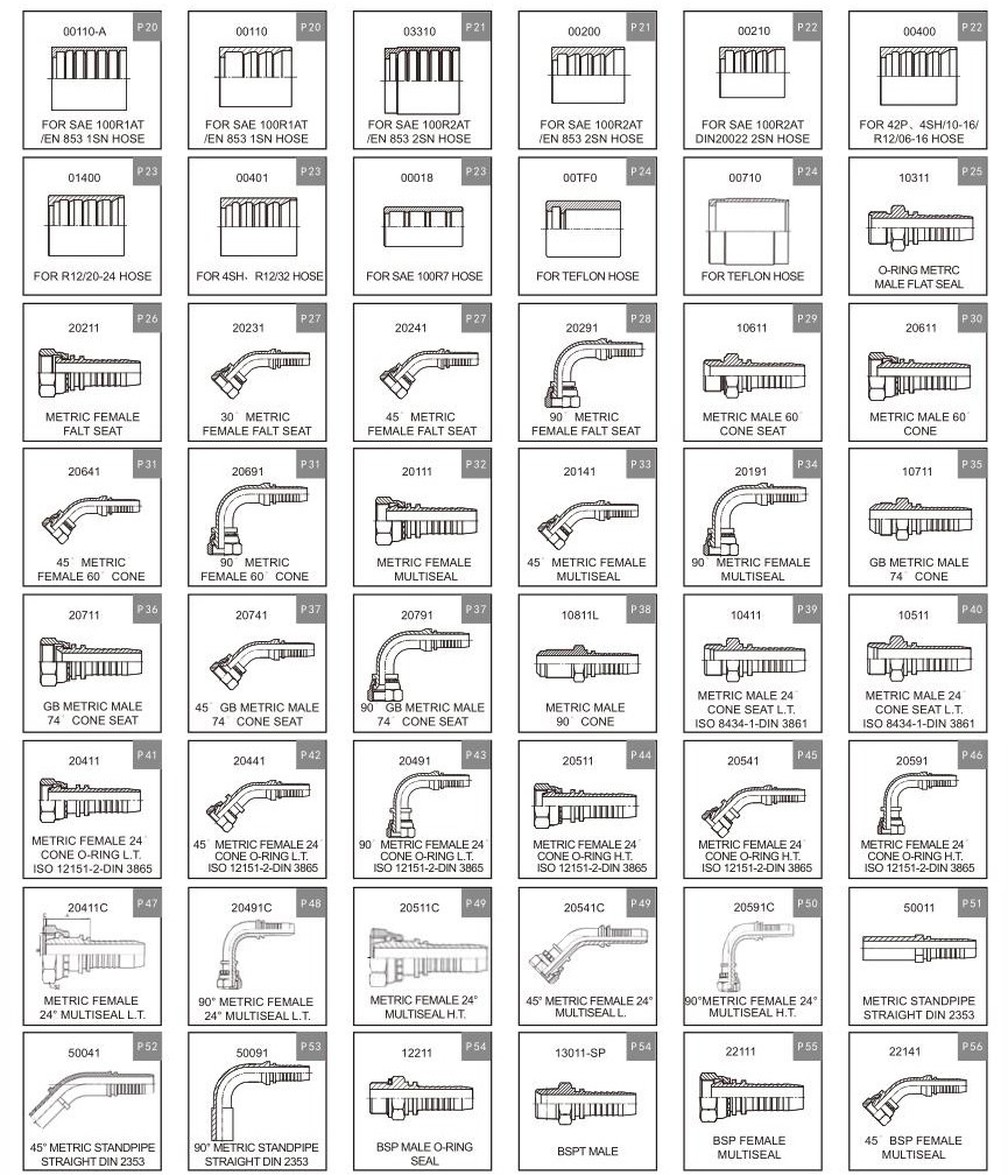

Nneɛma a ɛfata: nsateaa, tees, adapter, couplings, flanges, ne ntɛm-twa mu.
Hose compatibility: Ɛyɛ adwuma wɔ hydraulic hoses (R1, R2, R13, R15, 4SP, ne nea ɛkeka ho) ma nnwuma ahorow.
Customization & OEM/ODM Mmoa .
Solutions a wɔayɛ no yiye – sesa ne kɛse, nneɛma, ne nhama a wode bɛyɛ adwuma na ama ɛne wo specs no ahyia.
Private labeling – Fa OEM dwumadie ma branding ne packaging.
Fast production & wiase nyinaa nneɛma a wɔde mena .
Bere tiaa a wɔde di kan – mass production tumi a ɛwɔ turnaround a ɛyɛ ntɛm.
Wiase nyinaa nneɛma a wɔde kɔ amannɔne – Nneɛma a wɔde kɔ amannɔne a wotumi de ho to so ma wɔde ma a ɛnyɛ den.
10+ Mfeɛ a wɔde yɛ nsuo ho nimdeɛ .
Wɔde wɔn ho to adansi, kuayɛ, tu a wotu fam, ne mfiridwuma mfiri a wɔde di dwuma so ma ɛyɛ adwuma kɛse-Adwumayɛ mu nsu ano aduru.
FAQ .
Asɛmmisa: So woyɛ adwumayɛbea tẽẽ anaasɛ aguadi adwumakuw?
A: Yɛyɛ hydraulic fittings manufacturer tẽẽ wɔ yɛn ankasa production facility, hwɛ hu sɛ akansi bo, katee quality control, ne ntɛm delivery.
Asɛmmisa: Nneɛma bɛn na wode yɛ hydraulic fittings?
A: Yɛn fittings no yɛ nea ɛkorɔn-quality stainless steel, carbon steel, ne brass, a wɔpaw ma ɛtra hɔ kyɛ, corrosion resistance, ne soro-nhyɛso adwumayɛ.
Asɛmmisa: Adansedi bɛn na wo nneɛma wɔ?
A: Yɛwɔ ISO 9001 adansedie, na yɛn nneɛma no ne SAE, JIC, DIN, BSP, NPT, ne amanaman ntam gyinapɛn foforɔ hyia.
Asɛmmisa: So wubetumi ayɛ hydraulic fittings no sɛnea wopɛ?
A: Yiw! Yɛde OEM/ODM dwumadie ma, a nea ɛka ho ne amanneɛ akɛseɛ, threading (metric, NPT, BSP), ne nneɛma soronko a wɔde yɛ adwuma sɛ wɔbisa a.
Asɛmmisa: Dɛn ne wo dodow a ɛba fam koraa (MOQ)?
A: MOQ gyina product type so, nanso yɛboa **small trial orders ne bulk purchases de di adetɔfo ahiade ahorow ho dwuma.
Asɛmmisa: Wobɛyɛ dɛn ahwɛ ahu sɛ nneɛma a wɔyɛ no yɛ papa?
A: Fitting biara fa nhyɛso sɔhwɛ, leak sɔhwɛ, ne dimensional nhwehwɛmu ansa na wɔde amena de ahwɛ ahu sɛ wotumi de ho to so.
Asɛmmisa: Nnwuma bɛn na wo hydraulic fittings no som?
A: Yɛn fittings no yɛ nea wɔde di dwuma kɛse wɔ:
Ɔdansi & Mining (wɔn a wɔde nneɛma gu mu, nneɛma a wɔde gu mu) .
Kuadwuma(tractors, nsu a wɔde gugu nnɔbae so) .
Mfiridwuma mu mfiri (hydraulic presses, CNC mfiri) .
Oil & Gas(ɛkɔ soro{0}}Nhyɛso nsu a wɔde kɔ baabi foforo) .
Asɛmmisa: Bere bɛn na edi kan wɔ nneɛma a wɔyɛ ne nea wɔde ma mu?
A: Nneɛma a wɔde yɛ adwuma a ɛyɛ gyinapɛn: nnafua 7-15 .
Custom Orders: nnafua 15-30 (egyina nsɛm a ɛyɛ den so) .
Wiase nyinaa po so ahyɛn: Wɔboa denam mframa, po, anaa nneɛma a wɔde mena ntɛmntɛm so (DHL, FedEx, ne nea ɛkeka ho) .
Asɛmmisa: So wode nhwɛsode ahorow ma? So metumi asɔ wɔn ahwɛ ansa na wɔakra nneɛma pii?
A: Yiw, yɛde free anaa low-ɛka samplesfor quality verification ma. Adetɔfo betumi asɔ nneɛma a wɔde hyɛ mu no ahwɛ ansa na wɔde nneɛma akɛse ahyɛ wɔn nsa.
Asɛmmisa: Ɔkwan bɛn so na mepaw hydraulic fitting a ɛfata ma me application no?
A: Susuw ho:
Thread type (NPT, BSP, JIC, ne nea ɛkeka ho) .
Nhyɛso dodow(hwɛ PSI/MPA ahwehwɛde ahorow) .
Nneɛma (stainless steel for corrosion resistance, carbon dade ma ahoɔden a ɛkorɔn) .
Hose a ɛne ne ho hyia (kɛse & gyinapɛn) .
